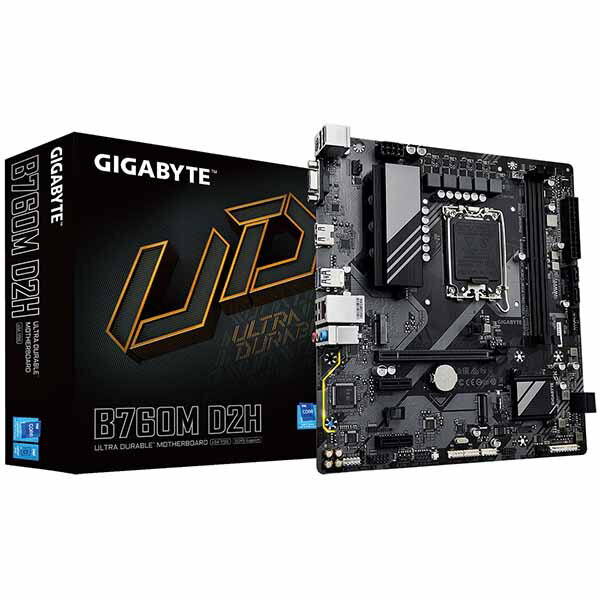

GIGABYTE B760M D2H (rev. 1.0) Intel B760 MicroATX マザーボード｜B760M D2H
 | GIGABYTE B760M D2H (rev. 1.0) Intel B760 MicroATX マザーボード｜B760M D2H ショップ：PC4U 楽天市場店
価格：18,806 円
|
Intel B760 MicroATX マザーボード [特徴] ・第
13 &
12 世代 Intel Core プロセッサー対応 ・Hybrid 6+2+1 デジタル電源フェーズ設計 ・Dual Channel DDR5 : 2 スロット搭載 (XMP 対応) ・高速ストレージ : 2*PCIe
4.0 x4 M.2 コネクタ
・EZ-Latch：クイックリリース付 PCIe x16 スロット ・高速ネットワーク :
2.5 GbE 有線 LAN ・充実した接続性 : HDMI, D-Sub 出力端子搭載 ・Smart Fan 6 搭載 ・Q-Flash Plus 搭載 [仕様] CPU
1. LGA1700 socket: Support for the 13th and 12th Generation Intel Core™, Pentium Gold and Celeron Processors
2. L3 cache varies with CPU (Please refer "CPU Support List" for more information.) チップセット Intel B760 Express Chipset メモリー
1. Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2. 2 x DDR5 DIMM sockets supporting up to
96 GB (48 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) 内蔵グラフィック Integrated Graphics Processor-Intel HD Graphics support: 1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI
2.0 version and HDCP
2.3. (Graphics specifications may vary depending on CPU support.) オーディオ
1. Realtek Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure
7.1-channel audio, access the audio software for audio settings.
4. Support for S/PDIF Out LAN Realtek
2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 拡張スロット CPU: 1. 1 x PCI Express x16 slot, supporting PCIe
4.0 and running at x16 Chipset: 1. 2 x PCI Express x1 slots, supporting PCIe
3.0 and running at x1 ストレージインターフェース CPU: 1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe
4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe
4.0 x4/x2 SSD support) (M2P_SB) 2. 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID
10 support for SATA storage devices USB Chipset: 1. 6 x USB
3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 2. 4 x USB
2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB
2.0 Hubs: 1. 4 x USB
2.0/1.1 ports available through the internal USB headers 内部入出力コネクタ 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB
3.2 Gen 1 header 3 x USB
2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI
2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper バックパネルコネクタ 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 4 x USB
3.2 Gen 1 ports 2 x USB
2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O コントローラー iTE I/O Controller Chip ハードウェアモニター
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP
1.0a, DMI
2.7, WfM
2.0, SM BIOS
2.7, ACPI
5.0 特徴
1. Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus バンドルソフトウェア
1. Norton Internet Security (OEM version)
2. LAN bandwidth management software オペレーティングシステム
1. Support for Windows
11 64-bit
2. Support for Windows
10 64-bit フォームファクター Micro ATX Form Factor;
24.4cm x
22.5cmマザーボード >LGA1700(Intel)
2024年1月17日
